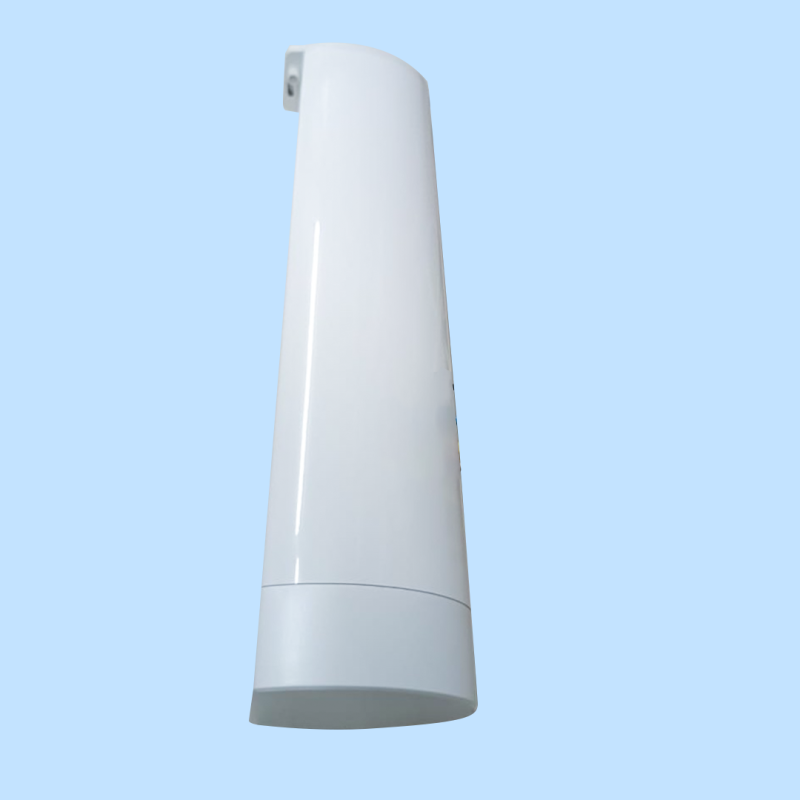

Dooya Smart Curtain Motor (5-Wire) – Power Meets Precision | USC-101

The iSwift USC-101 Dooya Curtain Motor combines strength, reliability, and smooth automation to deliver high-performance curtain control. Engineered with robust mechanics, this 5-wire motor can effortlessly drive two-way drawn curtains up to 100 kg, making it suitable for large residential and commercial spaces. Designed for quiet operation and advanced control options, it transforms traditional curtains into an intelligent home feature.

⚡ Power & Motion Control Technology

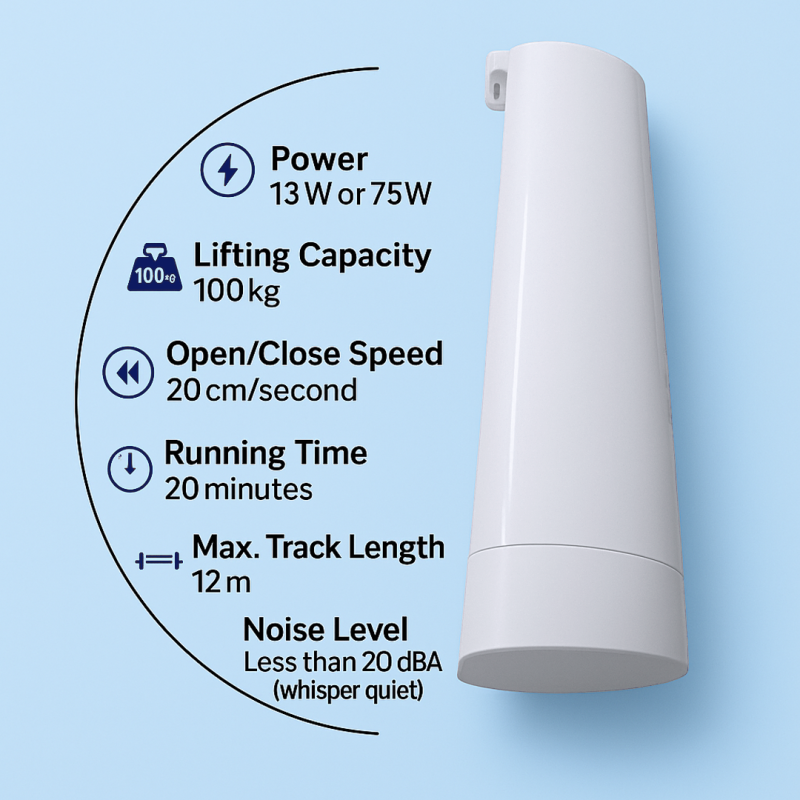

The USC-101 features Dooya’s precision-engineered motor technology, ensuring optimal torque and speed balance for stable operation. With a 75W power rating and an operating speed of 20 cm/sec, the motor provides swift yet silent curtain movement. Built-in Autocut and Autostart systems enhance safety and efficiency by automatically adjusting motion based on resistance or curtain length.

Its compact and sleek form factor allows discreet installation while maintaining high torque output, ensuring reliable performance even with heavy or long draperies.

✨ Key Highlights

• 💪 Heavy-Duty Load Capacity: Capable of smoothly operating curtains weighing up to 100 kg.

• 🔌 Multi-Control Compatibility: Supports Automation, Remote Control, Touch Switch, and Scheduling.

• 🤫 Silent & Smooth Operation: High-precision gearing ensures minimal noise during movement.

• 🧠 Smart Integration Ready: Seamlessly connects with iSwift and other home automation systems.

• ⚙️ Safety Features: Includes Autocut and Autostart protection mechanisms.

• 🧩 Flexible Mounting: Supports ceiling, wall, or concealed track integration.

• 🌈 Elegant Finish: Premium white color complements modern interior aesthetics.

🏢 Ideal Use Cases

The iSwift USC-101 Curtain Motor is ideal for:

• Luxury Residences: Master bedrooms, living rooms, and villas

• Commercial Offices: Meeting halls, conference rooms, and boardrooms

• Hotels & Lounges: Automated window setups for comfort and class

• Showrooms & Studios: For ambience control and aesthetic presentation

📊 Technical Specifications

🧰 Installation and Setup

1. Mount the motor onto the curtain track using compatible brackets.

2. Connect to a 5-wire interface for power and automation control.

3. Pair with the remote control or integrate into the smart home hub.

4. Test for direction, speed, and smoothness of curtain operation.

5. Adjust settings for schedule or touch control as needed.

📦 In the Box

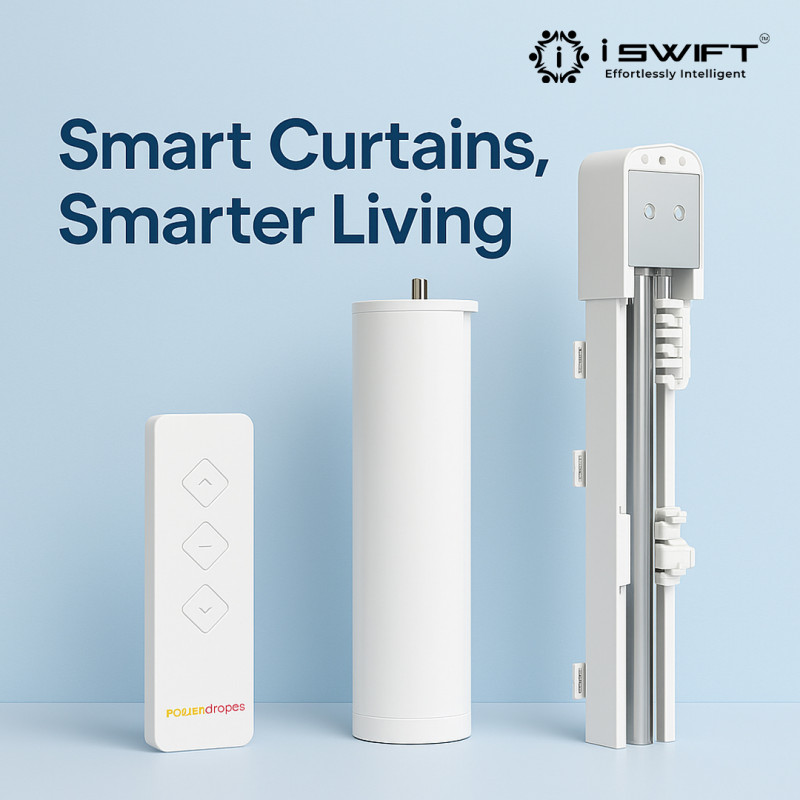

• 1 × Dooya Curtain Motor (USC-101)

• 1 × Mounting Bracket Set

• 1 × Remote Control (optional in kit)

• 1 × User Manual

• 1 × Warranty Card

Tags: Smart Curtain Motor, Dooya Motor, Heavy Load Curtain Motor, Motorised Curtain, Automation Motor
